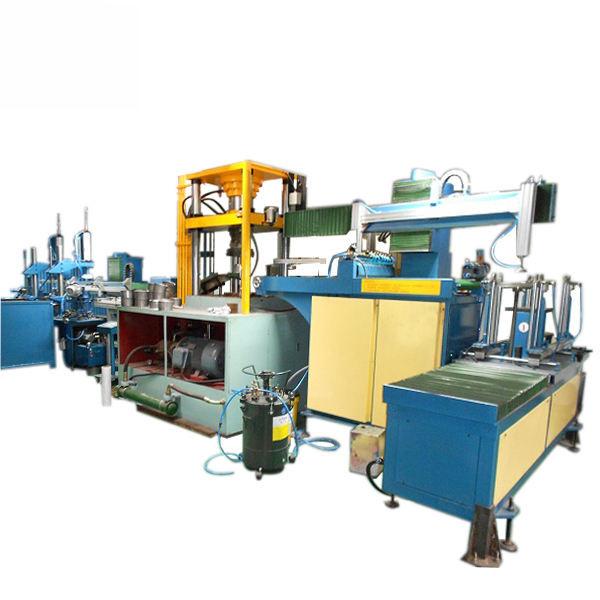

Industrial Automatic Pot Making Machine With CU ISO Certified

Name: Industrial Automatic Pot Making Machine With CU ISO Certified
Brand: Star Power
Price: 1 USD

Industrial Automatic Pot Making Machine With CU ISO Certified Manufactures

Brand Name : Star Power

Model Number : YD65A-75T

Certification : CU,ISO

Place of Origin : Guangdong, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Set/Sets per Month

Delivery Time : 1 month

Packaging Details : metal frame with film

Slide Stroke (mm) : 400

Return Force (kN) : 2000 kN

Machine Type : Hydraulic press machine

System : Servo

Voltage : 380V/220V Optional

Dimension(L*W*H) : 2200*2400*4200mm

Weight (T) : 3.5 T

Motor Power (kw) : 30 kw

Contact Now

Pot Making Machine Stainless Steel INDIA Field Maintenance and Repair Service GEAR Engine Spare Parts MOTOR PLC

Product Description:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

Quick Details:

Item		UNIT	YZ28G-75	YZ28G-120F	YZ28G-150	YZ28G-200F
Main Cylinder Force		kN	500	760	1000	1500
Rating Working Pressure Of Hydraulic System		MPa	25	20	20.5	20
Return Force		kN	50	50	80	57
Cushion Force		kN	250	350	500	500
Max. Working Pressure Of Cushion Cylinder		MPa	16.5	20	16	20
Ejector Force		kN	30	30	30	30
Max. Stroke Of Cushon Cylinder		mm	220	200	250	300
Max. Stroke Of Ejector		mm	200	165	230	200
Max. Stroke Of Slide Table		mm	460	400	540	550
Open Height	Max.	mm	760	710	940	950
Open Height	Min	mm	300	310	400	400
Slide Speed	Down	mm/s	225	290	240	260
	Pressure	mm/s	15-25	24/45	18-28	23
	Up	mm/s	220	270	240	230
Cushion Speed	UP	mm/s	105	90	90	90
Cushion Speed	Down	mm/s	down with slide table
Power Of Motor		Kw	7.5	15	18.5	30
Dimention Of Working Table (LRxFB)		mm2	500x560	600x700	650x750	700x880
Power Of Servo Motor		Kw		21.5	28.3	28.3
Dimention Of Machine(LRxFBxH)		mm2	1650x1500x2900	1800x1800x3000	1900x1850x3700	1900x2100x3550

Specifications:

This machine and we help you manufacture products like: sink, chafing dish & bakery tray, stainless steel cookware set, stainless steel kettle. Available for, but not limited for.

Advantages:

Industrial Automatic Pot Making Machine With CU ISO Certified

Product Tags:

ISO Automatic Pot Making Machine

CU Automatic Pot Making Machine

Industrial Automatic Pot Making Machine With CU ISO Certified Images
